产品用途  Product purpose

NXL-J楔型绝缘耐张线夹适用于10kV及以下架空绝缘铝芯线(JKLYJ)的终端或耐张段两端和绝缘子串一起，将架空绝缘导线固定和拉紧。

NXL-J wedge-type insulated strain clamp is suitable for the terminal of overhead insulated aluminum core wire (JKLYJ) of 10kV and below or strings the ends of the tensioning section, together with the insulator, to secure and tighten the overhead insulated wires.

产品特点  Product feature

◆高强度铸造铝合金制造，无磁滞损耗。

◆Manufactured from high-strength cast aluminum alloy without magnetic hysteresis loss.

◆楔型结构，安装简便可靠。

◆Wedge-type structure, which is easy and reliable installation.

◆圆弧大面积抱紧，导线不易滑动、握力大。

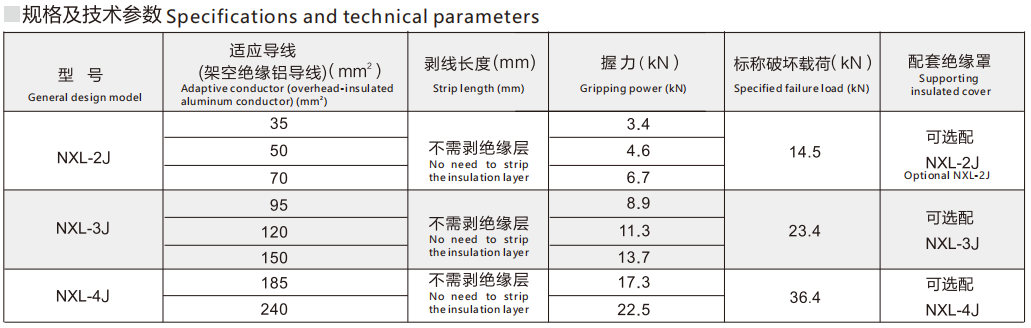

◆The arc is held tight over a large area, and the wire is not easy to slide and has a strong grip. Specifications and technical parameters.
