产品用途  Product purpose

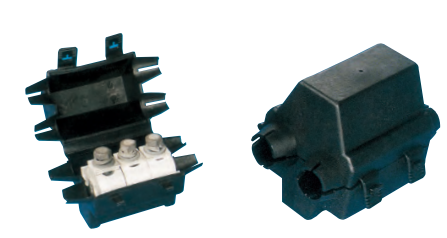

JBLY、JBTY、JBTLY系列异型并沟线夹适用于架空线路中导线的非承力接续与分支，与绝缘罩配套使用起防护绝缘作用。
JBLY, JB, PGA, JBTY, JBTLY shaped parallel groove clamp is suitable for the non-bearing connection and branch of  wire in overhead line, and plays a protective insulation function with the insulation cover.

产品特点 Product feature

◆高强度铝合金制造，无磁滞损耗。

◆Made of high-strength aluminum alloy without magnetic hysteresis loss.

◆部件连体，安装时不会掉件。

◆Components are integral and will not fall out during installation.

◆圆弧大面积抱紧，导线不易蠕变。

◆The arc is held tight over a large area, and the wire is not easy to creep.
